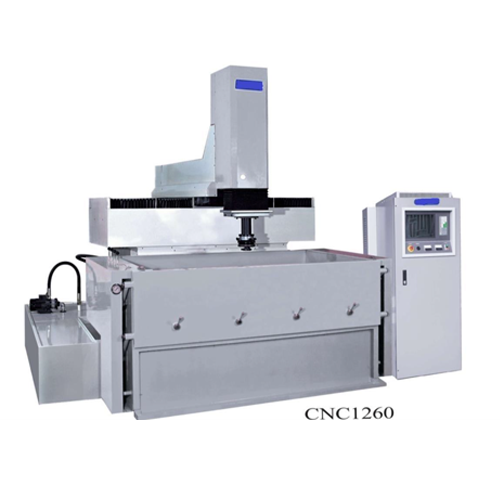

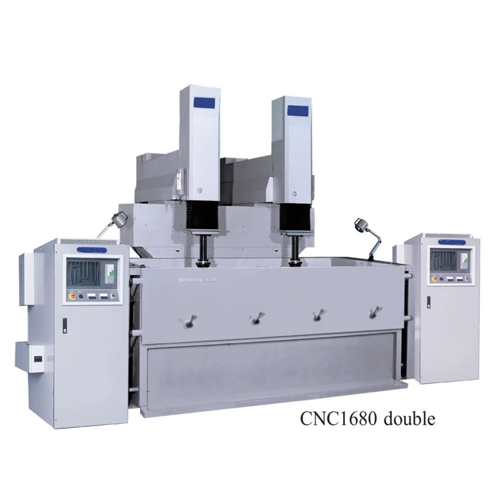

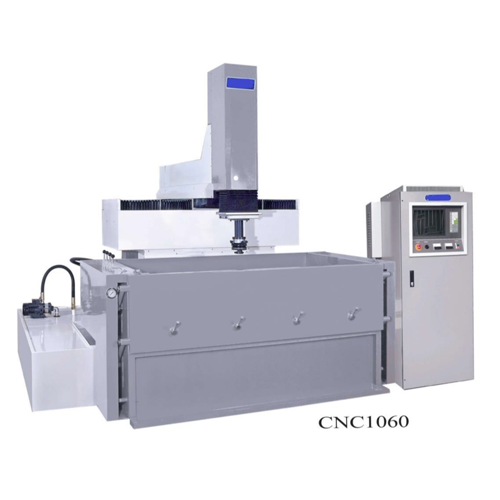

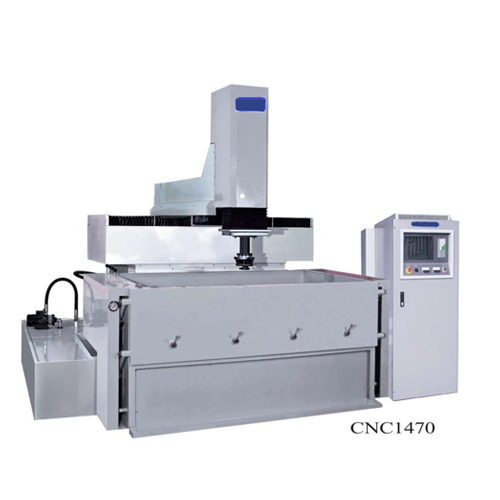

CNC Die Sinker EDM Machine

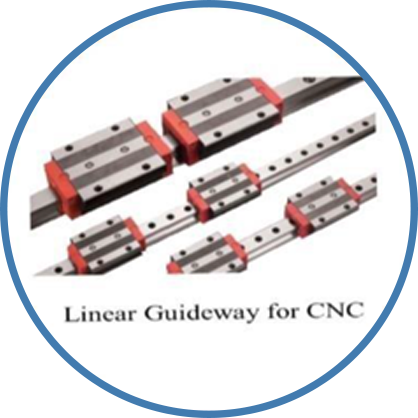

CNC EDM Introduction

Standard Accessories

  • LCD Monitor & 3-Axis Linear Scales(5um).
  • Z Axis DC Servo Motor & Ball screws.
  • Pcs Electrode Holder
  • Pcs Working Lamp
  • Clamping Kits
  • Set Cartridge Paper Filters
  • Machine Level Mounts.
  • Remote Control Box.
  • 0peration Manual Technical Data.

Optional Accessories

  • 3-Axis Linear Scales (l um).

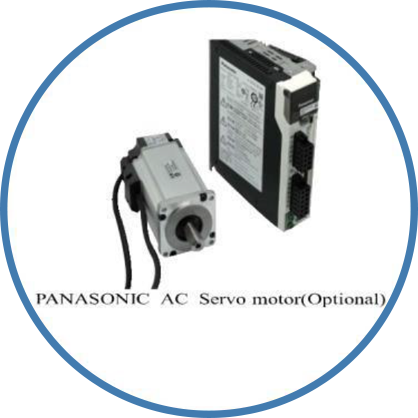

  • AC Servo Motor.
  • .System 3R or EROWA Tool Holders.
  • Carbide special processing circuit box.
  • Coolant System
  • EDM Oil.
  • Voltage Stabilizer

RAM TYPE SERIES

MODEL Unit SONIC5030 SUPERSONIC6040 ULTRASONIC8050
Work tank (W*D*H) mm 700*450*350 900*600*400 1000*600*450
Work table size mm 500 *300 600*400 800*500
Work table travel (X*Y*Z) mm 300*200*250 400*300*300 600*400*350
Max.dlstance from electrode plate to worktable mm 450 550 700
M ax. electrode weight Kg 50 80 120
Max,workpiece weight Kg 500 1000 1500
Cross weight Kg 1500 2000 2500
MODEL Unit MAXPRO1050 SUPERMAX1260 ULTRAMAX1570
Work tank (W*D*H) mm 1300*750*500 1500*900*550 1800*1000*600
Work table size mm 1000*500 1200*600 1500*700
Work table travel (X*Y*Z) mm 800*400*350 1000*500*400 1200*500*450
Max.dlstance from electrode plate to worktable mm 700 900 900
M ax. electrode weight Kg 80 140 140
Max,workpiece weight Kg 2000 3000 4000
Cross weight Kg 3000 3800 4800
03
03
03
03
03
03

POWER SUPPLY UNIT

Model 30A 50A 75A IOOA
Control Methed and Axis Close(Z-axis) Close(XYZ-axis)
Min.Setting Unit O.005mm(O.001mm)
Max.Setting Unit 999.995mm(999.999mm)
Coordinate System INC* ABS
Inching 0.005mm(0.001mm)unit x1,x5,x10
Max. machining current 30 50 75 100 30 50 75 Max. machining
current
Total power input KVA 4 6 8 12 4 6 8 Total power
input
Max.Material Removal Rate in 220 360 540 720 220 360 540 Max.Material
Removal Rate
Electrode Wear Rate
Best Surface Roughness Ra 0.2 0.23 0.25 0.18 0.2 0.23
External Dimension Packing Dimension mm
NET Weight Kgs 265 270 275 350 265 270 275 NET Weight
Machining Setting amount Per set 1 30
Steps 10 10
Machining Model Up sparking • Down sparking XY model(Z-Lock)• XYZ mo
Orbit Cut-ing No X, Square, round, hexagon,side spark
Continuous machining Max.hole amount 1 100

CNC EDM Machine Applied in Industries

Automotive

Aerospace

Medical

Electronics

Home Appliances
